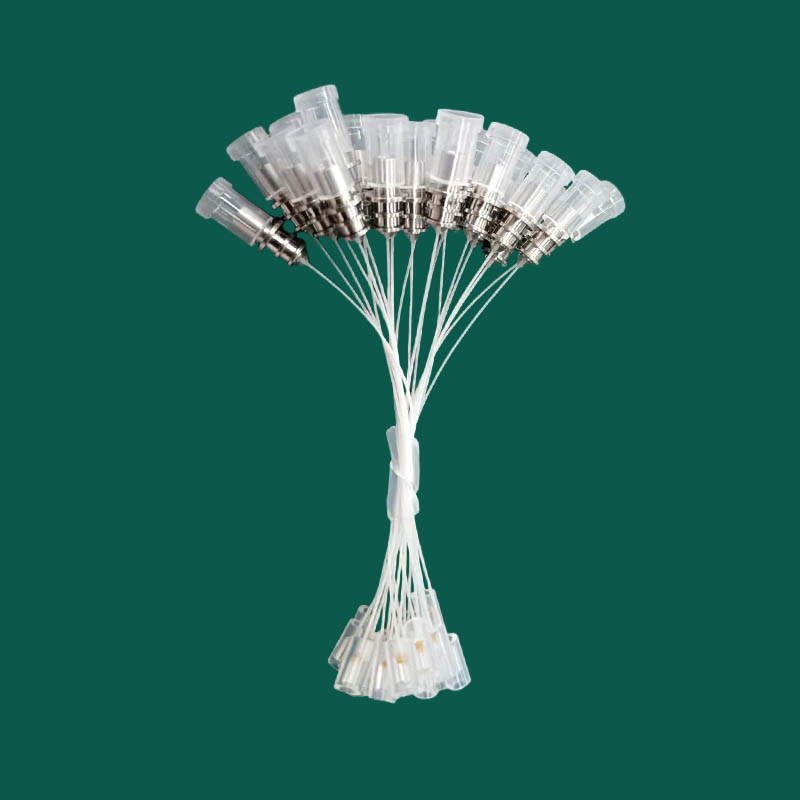

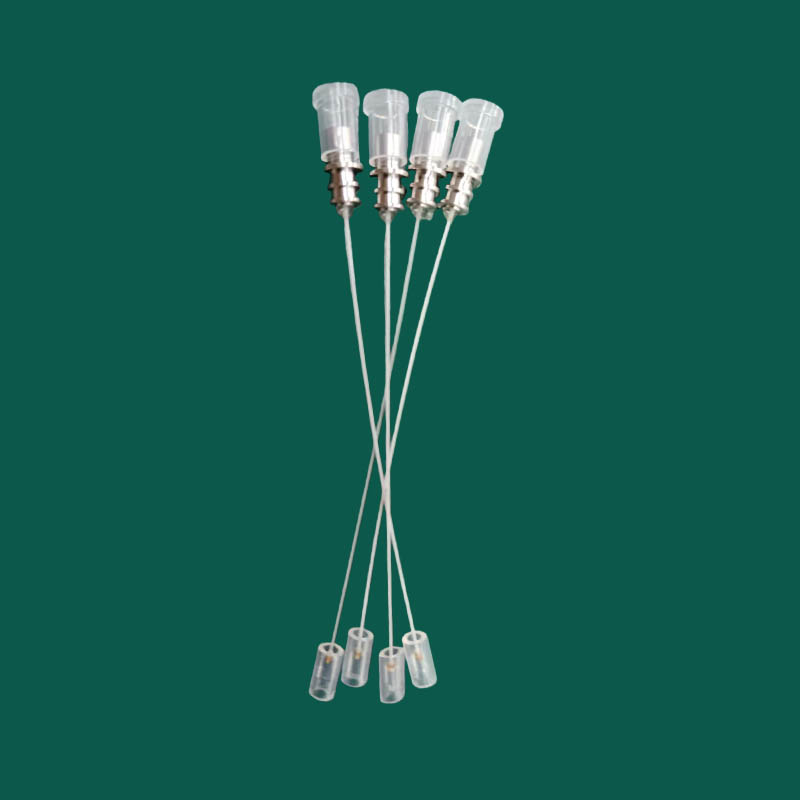

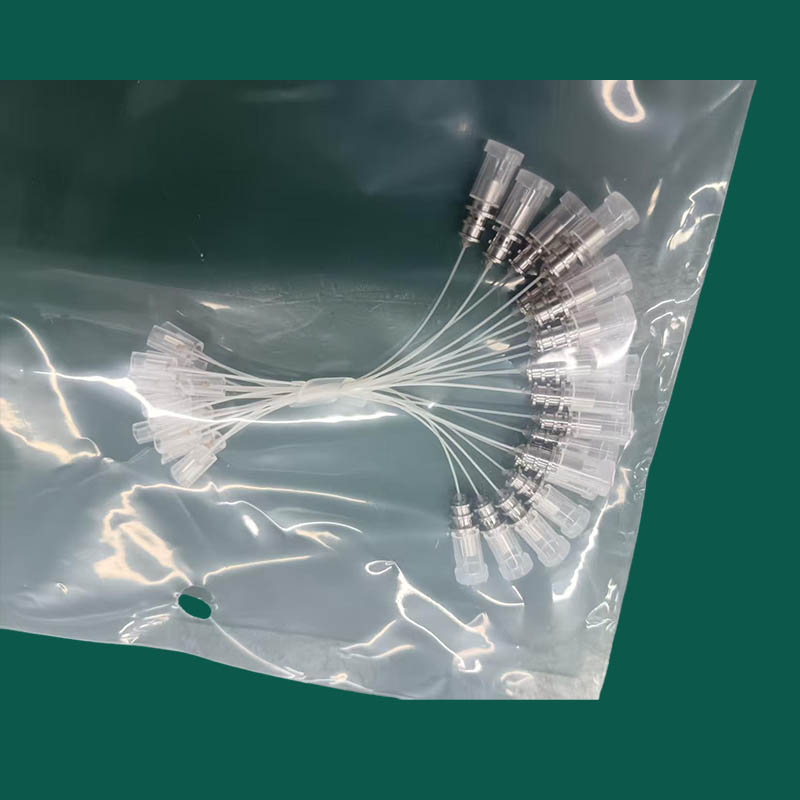

AWG-Demux Components CG-XY-002
CG-XY-002
Support sample making and customization.

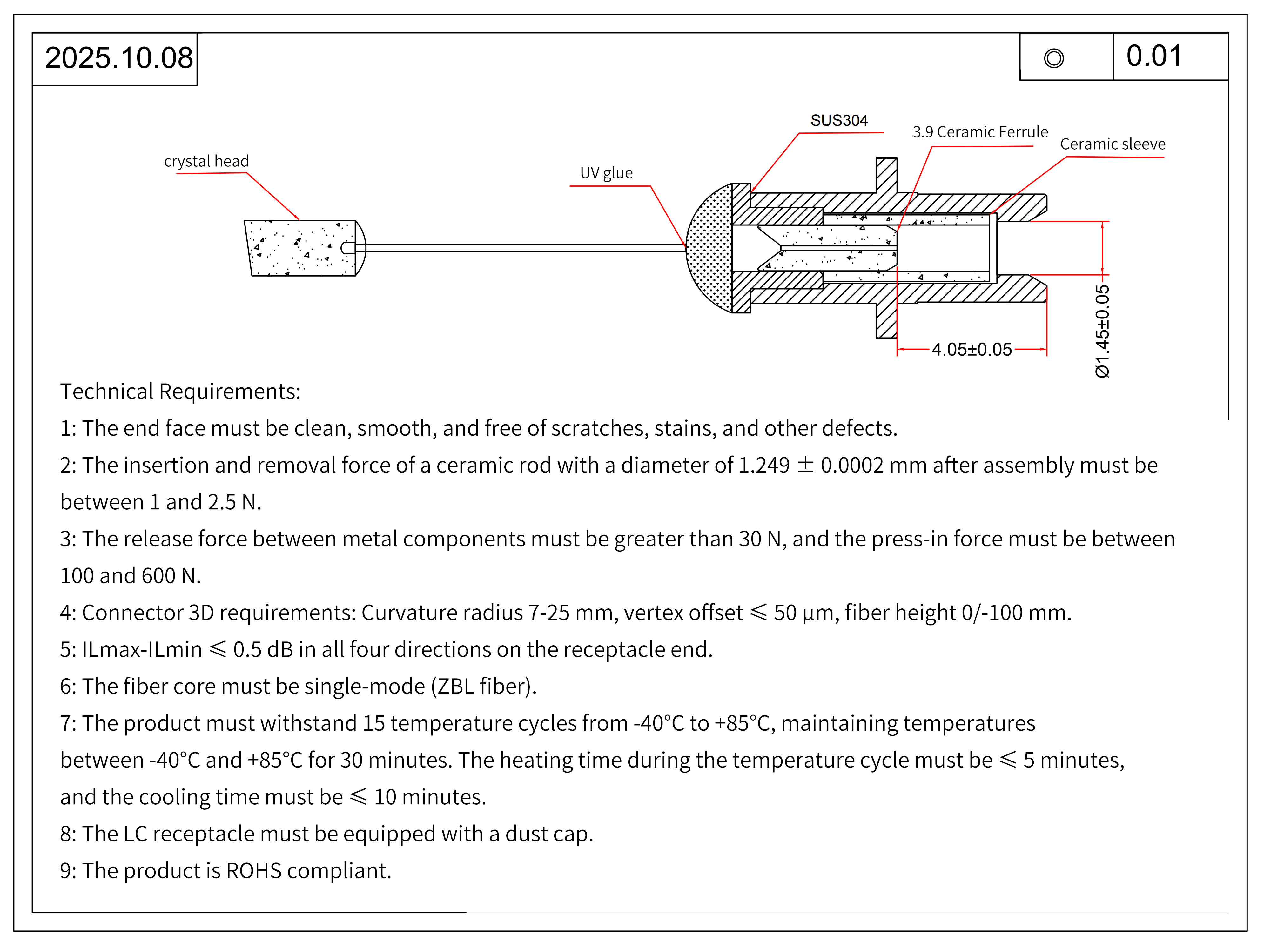

1. The end face must be clean, smooth, and free of scratches, stains, and other defects.
2. After assembly, the insertion and removal force of a ceramic rod with a diameter of 1.249 ± 0.0002 mm must be between 1 N and 2.5 N.
3. The release force between metal components must be greater than 30 N, and the press-in force must be between 100 and 600 N.
4. Connector 3D requirements: radius of curvature 7-25 mm, vertex offset ≤ 50 μm, and fiber height 0/-100 mm.
5. ILmax-ILmin ≤ 0.5 dB in all four directions on the receptacle end.
6. The fiber core must be single-mode (ZBL fiber).
7. The product must withstand 15 temperature cycles from -40°C to +85°C, maintaining temperatures between -40°C and +85°C for 30 minutes. The heating time during the temperature cycle must be ≤ 5 minutes, and the cooling time must be ≤ 10 minutes.
8. The LC receptacle must be equipped with a dust cap.
9. This product complies with ROHS standards.
