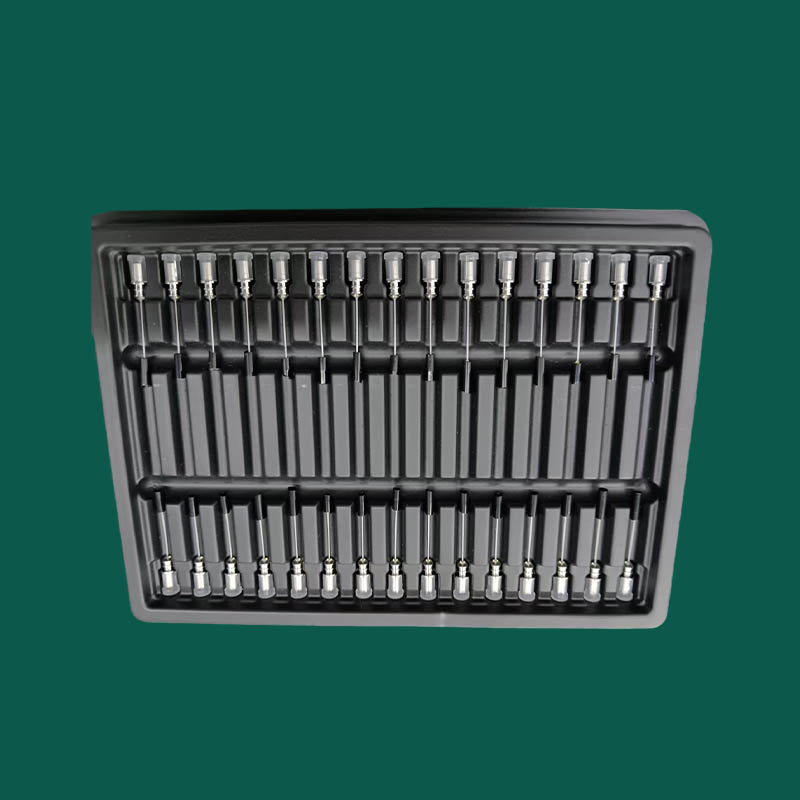

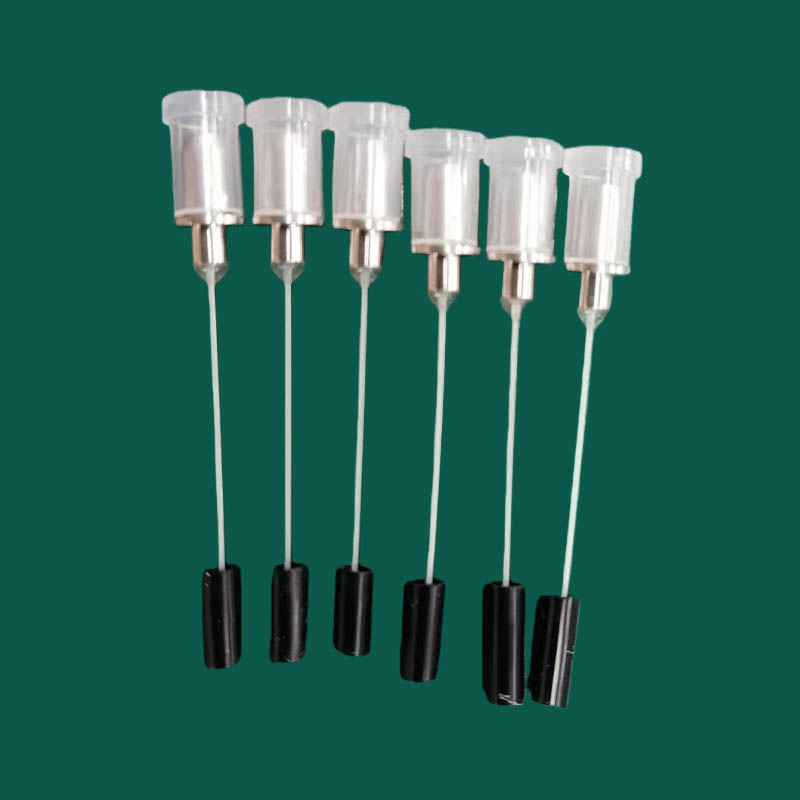

AWG-Demux Components CG-XY-003
CG-XY-003
Support sample making and customization.

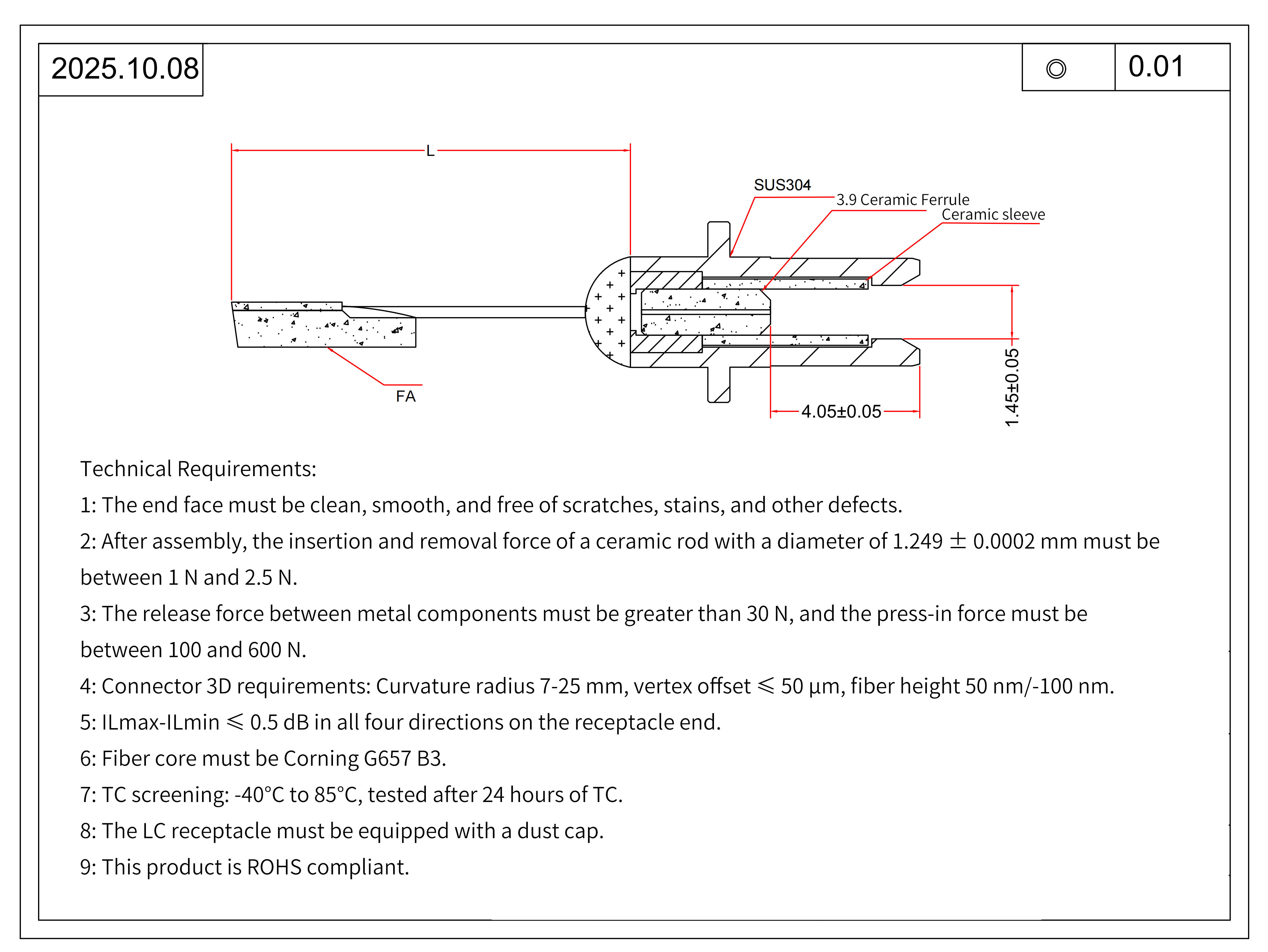

1. The end face must be clean, smooth, and free of scratches, stains, and other defects.
2. After assembly, the insertion and removal force of a ceramic rod with a diameter of 1.249 ± 0.0002 mm must be between 1 N and 2.5 N.
3. The release force between metal components must be greater than 3 N, and the press-in force must be between 100 and 600 N.
4. Connector 3D requirements: radius of curvature 7-25 mm, vertex offset ≤ 50 μm, fiber height 50 nm/-100 nm.
5. ILmax-ILmin ≤ 0.5 dB in all four directions at the receptor end.
6. The fiber core must be Corning G657 B3.
7. TC screening: -40°C to 85°C, tested after 24 hours of TC.
8. The LC receptor must be equipped with a dust cap.
9. This product complies with ROHS standards.
