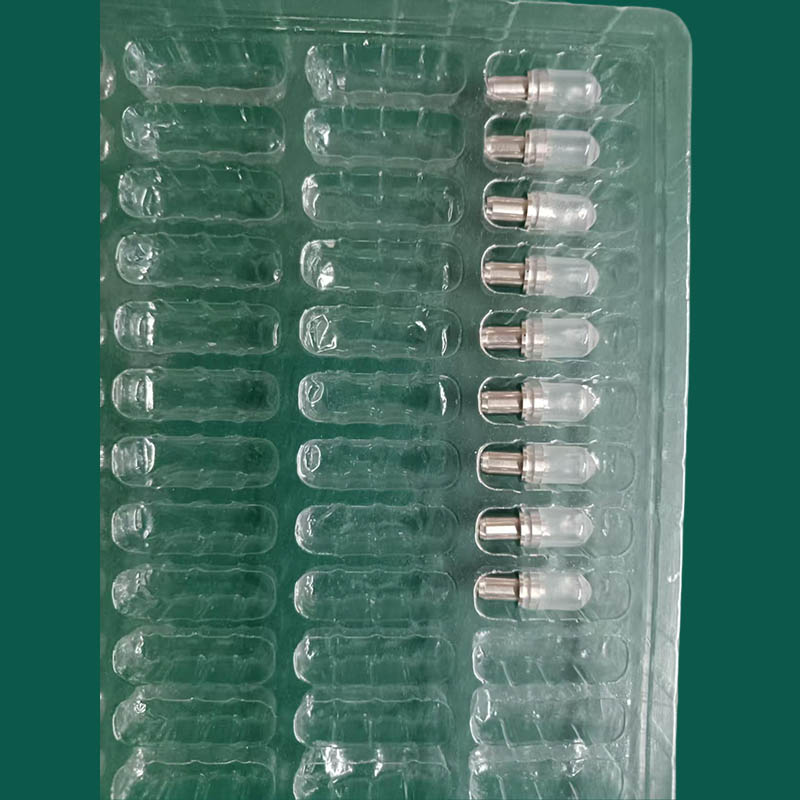

Adapter
CG-XY-005
Support sample making and customization.

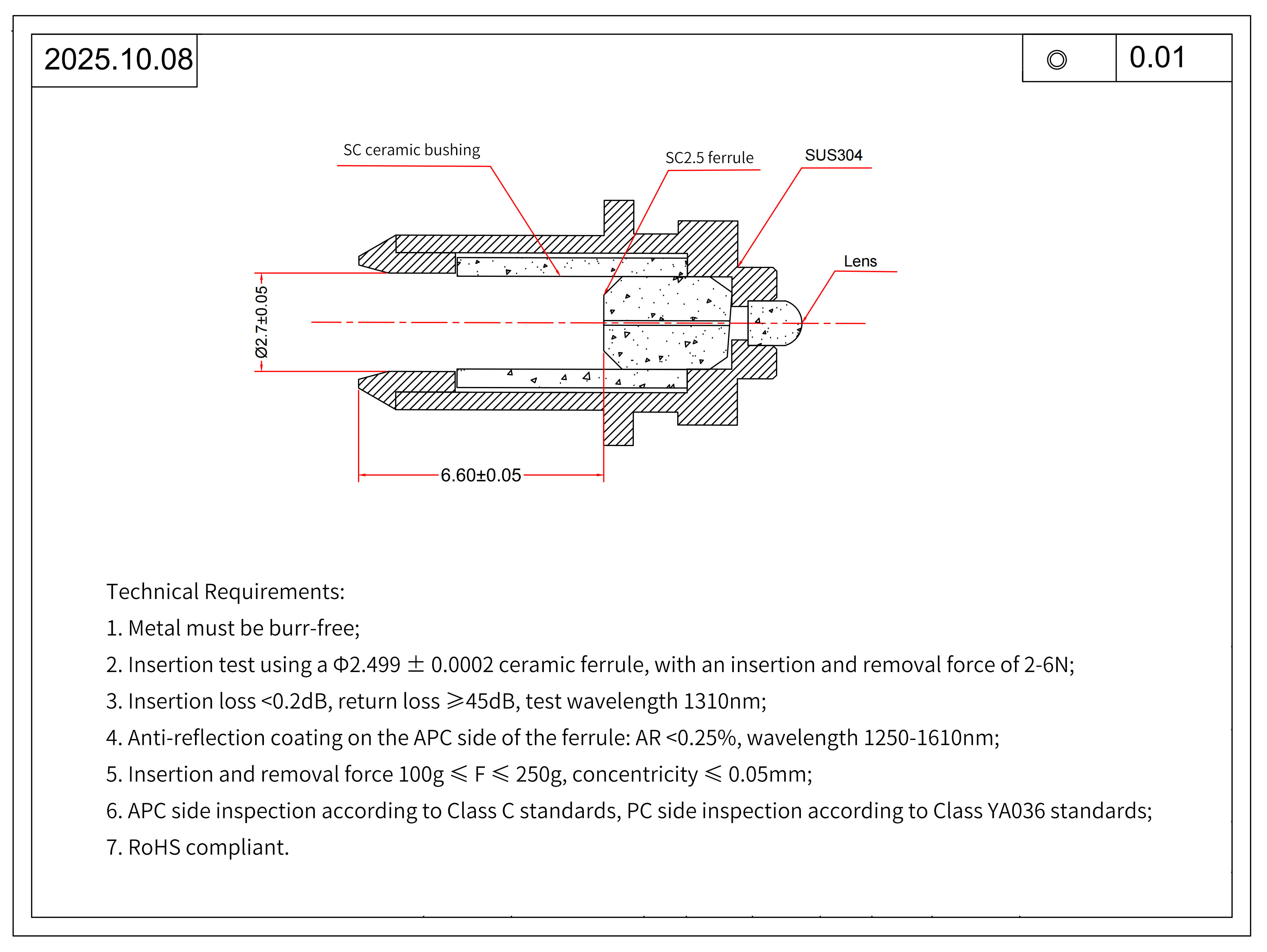

1. Metal is burr-free.
2. Insertion test using a φ2.499 ± 0.0002 ceramic ferrule, with an insertion and removal force of 2-6N.
3. Insertion loss <0.2dB, return loss ≥45dB, test wavelength 1310nm.
4. Anti-reflection coating on the APC side of the ferrule: AR <0.25%, wavelength 1250-1610nm.
5. Insertion and removal force 100g ≤ F ≤ 250g, concentricity ≤ 0.05mm.
6. The APC side is inspected according to Class C standards, and the PC side is inspected according to Class YA036 standards.
7. This product complies with Rons standards.
